VMC,Stroke X[mm] 1050
MACHINE SPECIFICATIONS
(VMC)3AX
KF5/50

Hyundai Wia - Product line up - KF Series - KF5 Series - Similar products - Comparison

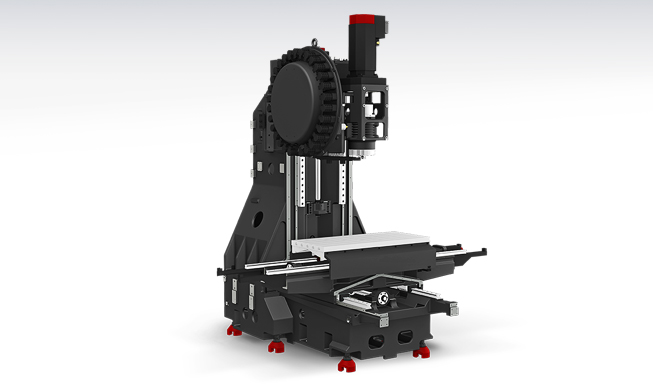

VMC(3AX) 1 MS C-frame
In-line spindleLMGBall Screw
HXYZXYZ

CategoryItemSpecification
TravelsStroke X[mm]1050
Stroke Y[mm]560
Stroke Z[mm]510
Rapid traverse(X)[m/min]36
Rapid traverse(Y)[m/min]36
Rapid traverse(Z)[m/min]30
TableWorkpiece allowable Load[kg]1000
Table Size[mm]1300×560
CategoryCNC brandFanuc
OriginKorea

Milling spindle 1(H1)

Spindle name
Taper7:24 taper No. 50
Rotational speed[rpm]8000
Power[kW]11!22
Torque[Nm]143!353.2
TransmissionIn-line spindle

Tool Magazine 1

Tool holder taper7:24 taper No. 50
No. of tool storage[ea]24
Tool diameter[mm]
Tool length[mm]
Tool weight[kg]
Tool change time(TTT)[s]
Tool change time(CTC)[s]5.5
*A: Max. tool diameter (with adjacent tools)*B: Max. tool diameter (without adjacent tools), C: Max. tool diameter (single point)

Guide way

AxisXYZ
Guide wayLMG/Roller LMGLMG/Roller LMGLMG/Roller LMG
Qty222

Linear axes drive

AxisXYZ
DriveBall screwBall screwBall screw
Qty111

KF5 Series

ModelTable SizeOrigin
KF5/50
(VMC)3AX C-frame		1300×560Korea
KF5
(VMC)3AX C-frame		1300×560Korea

KF Series

ModelTable SizeOrigin
KF5/50
(VMC)3AX C-frame		1300×560Korea
KF5
(VMC)3AX C-frame		1300×560Korea
KF 3500/5A
(VMC)5AX C-frame		Ø350Korea
KF 4300/2SP
(VMC)3AX/(VMC)Multi-head C-frame		1040×430Korea
KF 4300D
(VMC)3AX Moving column		660×480Korea
KF 4600 II
(VMC)3AX C-frame		1050×460Korea
KF 4608
(VMC)3AX C-frame		1050×460Mainland China
KF 5200/2SP
(VMC)3AX/(VMC)Multi-head C-frame		1200×520Korea
KF 5200D
(VMC)3AX Moving column		860×570Korea
KF 5600/50 II
(VMC)3AX C-frame		1250×560Korea
KF 5600L II
(VMC)3AX C-frame		1500×560Korea
KF 5600M
(VMC)3AX C-frame		1250×560Korea
KF 5600 II
(VMC)3AX C-frame		1250×560Korea
KF 5608L
(VMC)3AX C-frame		1500×560Mainland China
KF 5608
(VMC)3AX C-frame		1250×560Mainland China
KF 5700B/50 II
(VMC)3AX C-frame		1300×570Korea
KF 5700B II
(VMC)3AX C-frame		1300×570Korea
KF 6700/2SP
(VMC)3AX/(VMC)Multi-head C-frame		1500×670Korea
KF 6700/50 II
(VMC)3AX C-frame		1500×670Korea
KF 6700B/50 II
(VMC)3AX C-frame		1500×670Korea
KF 6700B II
(VMC)3AX C-frame		1500×670Korea
KF 6700M
(VMC)3AX C-frame		1500×670Korea
KF 6700 II
(VMC)3AX C-frame		1500×670Korea
KF 6708/50
(VMC)3AX C-frame		1500×670Mainland China
KF 6708
(VMC)3AX C-frame		1500×670Mainland China
KF 7300/5A
(VMC)5AX Moving column		Ø630
Ø730		Korea
KF 7600L
(VMC)3AX C-frame		2250×760Korea
KF 760BM
(VMC)3AX C-frame		1800×700Korea
KF 7700B/50 II
(VMC)3AX C-frame		1650×760Korea
KF 7700B II
(VMC)3AX C-frame		1650×760Korea
KF 960BM
(VMC)3AX C-frame		2700×950Korea
